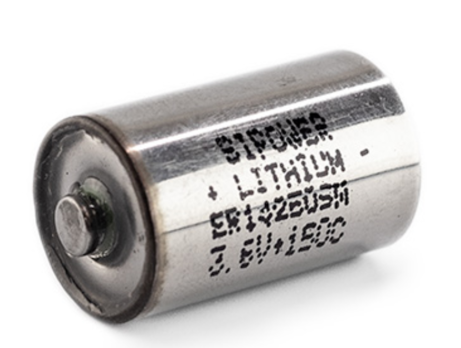

Battery for HiTemp140 Range of products

Nominal voltage 3.6V

Nominal capacity at 150°C: 600mAh

- Rated at 10mA discharge @+150°C, 2.0V cut-off voltage

Maximum recommended continuous current: 50mA

- Retaining 100% nominal capacity at +150°C, 2.0V cut off

 Maximum pulse current capacity: 100mA

-Voltage retains at 2.7V min. at 100mA pulse in 0.1 second every 2 minutes to a battery of 50% discharge depth with 20µA base current (pre-discharged at 10 mA @+150°C).

Operating temperature range: (-40°F to 302°F) -40°C to +150°C

Storage temperature (recommended) +30°C (86°F) max.

Dimensions (max.)          - Diameter x Height 14.3mm x 25.0mm

Typical weight: 10g
