MADGETECH HiTemp140-M12
주요특징
· 제품 사양
General
Memory 43,690 readings
Reading Rate 4 readings per second up to 1 reading every 24 hours
Baud Rate 125,000
Battery Life 1 year typical (1 minute reading rate at +25 °C / +77 °F)
User Replaceable Battery
Material 316 Stainless Steel
Dimensions 2.14 in x 0.97 in x 0.97 in (54.5 mm x 24.6 mm x 24.6 mm)
IP Rating IP40 - logger alone (with no probe connected)
The logger will inherit IP rating of the attached probe
(up to, and including IP68/IP69K).
Submersible Yes (with probe attached)
Operating Environment -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH non-condensing, 0.002 PSIA to 60 PSIA (Body of Logger cannot Exceed 140 °C)
Required Interface Package IFC400 or IFC406
Approvals CE
Temperature
Temperature Sensor Various RTD Probes with M12 Connector (Sold Separately)
Temperature Resolution 0.0001 Ω, 0.01 °C (0.02 °F) (Probe Dependent)
Temperature Calibrated Accuracy ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent)
Calibrated Accuracy Range:
*18 Ω to 200 Ω, -200 °C to +265 °C (-328 °F to +509 °F)
*Calibrated accuracies based on standard MadgeTech calibrations
for 0 Ω to 200 Ω range.
Probe Temperature Range 18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent) (Body of Logger Cannot Exceed 140 °C)
General
Memory 43,690 readings
Reading Rate 4 readings per second up to 1 reading every 24 hours
Baud Rate 125,000
Battery Life 1 year typical (1 minute reading rate at +25 °C / +77 °F)
User Replaceable Battery
Material 316 Stainless Steel
Dimensions 2.14 in x 0.97 in x 0.97 in (54.5 mm x 24.6 mm x 24.6 mm)
IP Rating IP40 - logger alone (with no probe connected)
The logger will inherit IP rating of the attached probe
(up to, and including IP68/IP69K).
Submersible Yes (with probe attached)
Operating Environment -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH non-condensing, 0.002 PSIA to 60 PSIA (Body of Logger cannot Exceed 140 °C)
Required Interface Package IFC400 or IFC406
Approvals CE
Temperature
Temperature Sensor Various RTD Probes with M12 Connector (Sold Separately)
Temperature Resolution 0.0001 Ω, 0.01 °C (0.02 °F) (Probe Dependent)
Temperature Calibrated Accuracy ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent)
Calibrated Accuracy Range:
*18 Ω to 200 Ω, -200 °C to +265 °C (-328 °F to +509 °F)
*Calibrated accuracies based on standard MadgeTech calibrations
for 0 Ω to 200 Ω range.
Probe Temperature Range 18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent) (Body of Logger Cannot Exceed 140 °C)
제품 정보

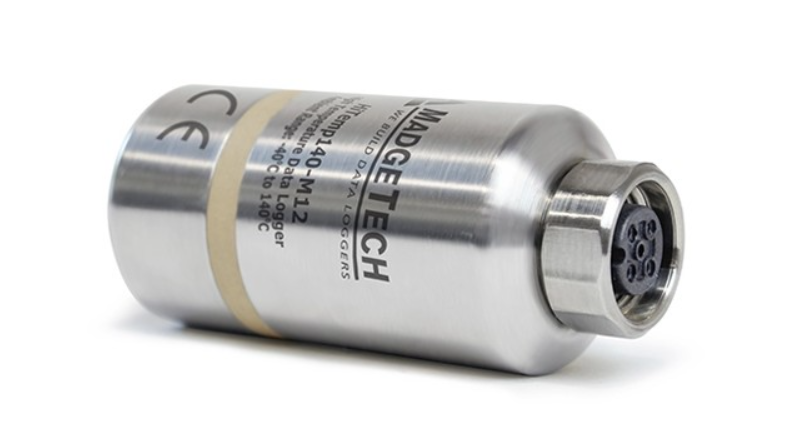

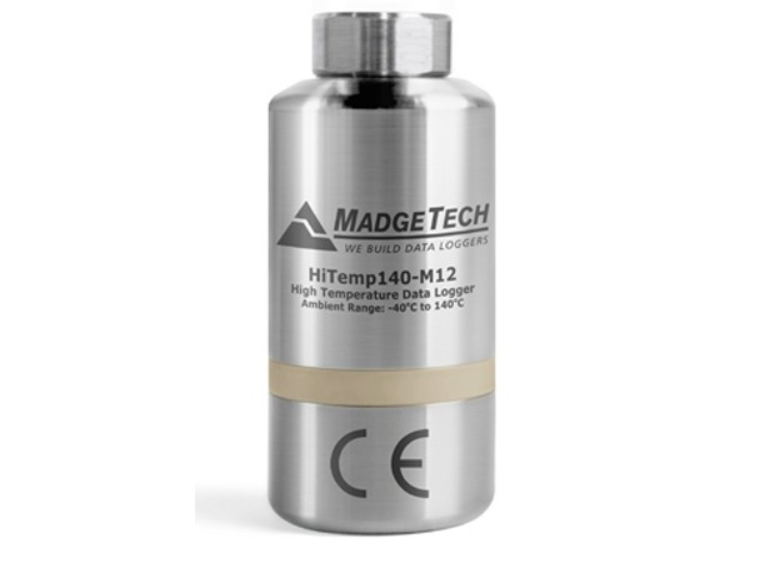

HiTemp140-M12는 M12 프로브 커넥터가 있는 고온 데이터 로거입니다.
필요에 따라 프로브를 교체할 수 있는 기능을 갖춘 이 장비는 다양한 응용 분야 요구를 충족시킵니다.
다양한 M12 RTD 프로브 스타일과 호환되는 HiTemp140-M12는 최대 850 °C (1562 °F)까지 측정할 수 있습니다 (프로브에 따라 다름).
HiTemp140-M12는 최대 43,690 개의 타임 스탬프 판독값을 기록하고 저장하며 최대 18개월 전에 즉시 시작 또는 지연 시작하도록 프로그래밍 할 수 있습니다.
HiTemp140-M12는 최신 MadgeTech 4 소프트웨어와 호환되어 간단하고 쉽게 시작, 중지 및 다운로드 할 수 있습니다.
그래픽, 테이블 및 요약 데이터가 분석을 위해 제공되며 사용자 정의 가능한 엔지니어링 단위로 볼 수 있습니다.
데이터 로거 본문은 140 °C (284 °F)를 초과할 수 없지만 MadgeTech의 열 차단 옵션과 함께 사용하면 더 높은 온도로 확장될 수 있습니다.
· 제품 사양
General
| Memory | 43,690 readings |
| Reading Rate | 4 readings per second up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Battery Life | 1 year typical (1 minute reading rate at +25 °C / +77 °F) User Replaceable Battery |
| Material | 316 Stainless Steel |
| Dimensions | 2.14 in x 0.97 in x 0.97 in (54.5 mm x 24.6 mm x 24.6 mm) |
| IP Rating | IP40 - logger alone (with no probe connected) The logger will inherit IP rating of the attached probe (up to, and including IP68/IP69K). |
| Submersible | Yes (with probe attached) |
| Operating Environment | -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH non-condensing, 0.002 PSIA to 60 PSIA (Body of Logger cannot Exceed 140 °C) |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE |
Temperature
| Temperature Sensor | Various RTD Probes with M12 Connector (Sold Separately) |
| Temperature Resolution | 0.0001 Ω, 0.01 °C (0.02 °F) (Probe Dependent) |
| Temperature Calibrated Accuracy | ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent) Calibrated Accuracy Range: *18 Ω to 200 Ω, -200 °C to +265 °C (-328 °F to +509 °F) *Calibrated accuracies based on standard MadgeTech calibrations for 0 Ω to 200 Ω range. |
| Probe Temperature Range | 18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent) (Body of Logger Cannot Exceed 140 °C) |
